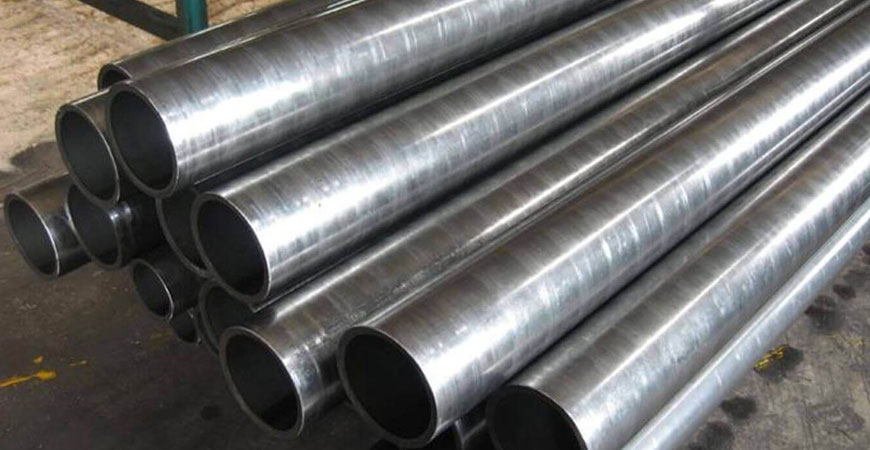

Advantages of Nickel Alloy Pipes in Industrial Applications

Nickel alloy pipes are used in various industries due to their excellent corrosion resistance, high strength, and ability to withstand extreme temperatures. Here’s a rundown on what you should know about them:

Key Properties

Corrosion Resistance: Nickel alloys, such as Inconel, Monel, and Hastelloy, are highly resistant to corrosion from acids, alkalis, and seawater. This makes them ideal for use in harsh environments like chemical processing or marine applications.

High-Temperature Strength: These alloys retain their strength and structural integrity at elevated temperatures. This makes them suitable for applications like gas turbines and other high-temperature industrial processes.

Thermal Stability: Nickel alloys can maintain their mechanical properties in extreme temperature fluctuations, which is important for many high-tech and industrial applications.

Workability: While nickel alloys can be more challenging to machine and weld compared to other materials, advances in technology have made working with these alloys more manageable.

Common Types

Inconel: Known for its high-temperature strength and oxidation resistance. Used in aerospace, chemical processing, and nuclear reactors.
Monel: Offers excellent resistance to seawater and acids. Common in marine applications and chemical processing.
Hastelloy: Provides excellent resistance to oxidizing and reducing acids and is used in severe environments like chemical processing and aerospace.

Nickel Alloy Pipe Specifications

ASTM Specification	ASTM B167, B161, B165, B622, B729, B338, B241 / ASME SB167, SB161, SB163, SB622, SB729, SB338, SB241
Standard	ASTM, ASME, JIS, AISI, AMS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB
ASTM B829 Nickel Alloy Seamless Pipe Size	4 to 219mm W. T.: 0.5 to 20mm
ASTM B725 Nickel Alloy Welded Pipe Size	5.0 - 1219.2 mm
Nickel-Cobalt Alloys EFW Pipe size	5.0 - 1219.2 mm
Swg & Bwg	12 Swg., 10 Swg., 16 Swg., 14 Swg., 20 Swg., 18 Swg.,
Nickel Pipe Schedule	XS, SCH30, SCH40, XXS, SCH80, SCH120, SCH60, SCH140, STD, SCH10, SCH10S, SCH40S, SCH80, SCH20, SCH5, SCH160
Nickel pipe Length	Double Random, Single Random, Standard & Cut length Pipe
Finish	Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish, etc
Form	Nickel are available in form of Round, Square, Hollow, Rectangular, Hydraulic, Coiled, Straight Pipes, “U” Shape, Pan Cake Coils etc.
Type of Nickel Alloy Pipe	Seamless / ERW/ EFW / Welded / Fabricated / CDW / DOM / CEW Nickel
Nickel pipe End	Plain End, Beveled End, Treaded Pipe, Screwed ends
Marking on Nickel Steel Pipe	All Astm B725 Nickel Alloy Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)
Application of Nickel pipe	Dairy Pipe, Oil Pipe, Gas Pipe, Fluid Pipe, Boiler Pipe for Chemical Industry
Value Added Service	Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc.
Specialize in	Large Diameter NickelPipe
Nickel pipe manufacturing Technique	Cold drawn, hot drawn, bright annealed, solid solution, hot extruding
Our stockyard	Pune, Coimbatore, Noida, Tiruchirappalli, Bengaluru, Thiruvananthapuram, Shivamogga, Dhanbad, Chennai, Tirunelveli, Agra, Ahmedabad, Bhubaneswar, Mumbai, Hyderabad, Navi Mumbai, Pimpri-Chinchwad,
Nickel pipe Test Certificate	Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection
Material Test Certificates (MTC)	Material Test Certificates (MTC) as per EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2, 100% Radiography Test Report, Heat Treatment Charts, Raw Materials Certificate, Third Party Inspection Report, Fumigation Certificates, Nickel HS Code Commercial Invoice, Form A for Generalized System of Preferences (GSP)
Manufacturers of Nickel pipe	Nickel Pipe make Sanyo Special Steel, Japan Nickel Steel Pipe make Schoeller Bleckmann, Austria Nickel Pipe make Nippon Steel Corporation, Japan Nickel Pipe make Sumitomo Metals, Japan Nickel Steel Seamless Pipe make Seah Steel Corporation, Korea Nickel Steel Pipe make Kobe Special Tube, Japan Nickel Pipe make Tubacex Tubos Inoxidables S.A., Spain
Grades	Inconel 600, 625, 718, 800, 825, Hastelloy C-276, C22, MONEL 400, SMO 254, NICKEL 200/201
We can also cut, thread, and groove ASTM B829 Nickel Alloy Pipe to meet your specifications. Nickel pipe Dimension ANSI/ ASME B36.10, B36.19, B2.1

Nickel Alloy Grades

Alloy	Cr	Ni	C	Mn Max.	Si Max.	P Max.	S Max.	Other Elements
Carpenter 20Cb-3	20.0	35.0	0.06 Max.	2.0	1.0	0.035	0.035	Cu 3.5, Mo 2.5, Nb+Ta 8xC Min/1.0 Max
Haynes 25 (L605)	20.0	10.0	0.05/0.15	2.0	1.0	....	....	Co 50.0, W 15.0
Hastelloy B-2	1.0	68.0	0.02 Max.	1.0	0.10	0.04	0.03	Mo 28.0, Co 1.0
C-276	15.5	57.0	0.02 Max.	1.0	0.08	0.03	0.03	Mo 16.0
Hastelloy X	21.8	47.5	0.05/0.15	1.0	1.0	0.04	0.03	Mo 9.0, Co 1.5
Inconel 600	15.5	76.0	0.15 Max.	....	....	....	....	.........
Inconel 601	23.0	60.5	0.10 Max.	....	....	....	....	Al 1.00/1.70
Inconel 625	21.5	61.0	0.10 Max.	....	....	....	....	Mo 9.0, Nb+Ta 3.6
Inconel 718	19.0	52.5	0.08 Max.	....	....	....	....	Mo 3.0, Nb+Ta 5.1
Incoloy 800	21.0	32.5	0.10 Max.	....	....	....	....	.........
Incoloy 825	....	....	....	....	....	....	....	.........
Monel 400	....	66.5	0.30 Max.	....	....	....	....	Cu 31.5
Nichrome V	20.0	80.0	....	....	....	....	....	.........
Nickel 200	....	99.6	0.15 Max.	....	....	....	....	.........
Nickel 201	....	99.6	0.02 Max.	....	....	....	....	.........

Nickel Alloy Grades – Chemical Composition

Nickel 200	Ni	C	Mo	Mn	Si	Fe	P	S	Cu	Cr
Nickel 200	99.0 Min	0.15 Max	–	0.35 Max	0.1 Max	0.4 Max	–	0.01 Max	0.25 Max	–
Nickel 201	Ni	C	Mo	Mn	Si	Fe	P	S	Cu	Cr
Nickel 201	Balance	0.15 Max	–	0.35 Max	0.35 Max	0.40 Max	–	0.01 Max	0.25 Max	–

Nickel Pipe Mechanical Properties

Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
8.9 G/Cm3	1446 °C (2635 °F)	Psi – 21500 , MPa – 148	Psi – 67000 , MPa – 462	45 %

Equivalent Grades for Nickel Steel Pipe

STANDARD	UNS	WERKSTOFF NR.	AFNOR	EN	JIS	BS	GOST
Nickel 200	N02200	2.4066	N-100M	Ni 99.2	NW 2200	NA 11	НП-2
Nickel 201	N02201	2.4068	–	LC-Ni 99	NW 2201	NA 12	НП-2

Nickel Steel Pipe Price List

Price of Nickel pipe manufacturer in India	Astm B725 Nickel Alloy Pipe Price in India (INR)	Nickel pipe Price in UK Pound sterling	ASTM B829 Nickel Alloy Pipe Price in UAE Dirham
Nickel 200 Welded Pipe Uns No2200, Size: 10nps X Sch. 10s	INR 587,856	6329.05 UK Pound Sterling	30350.02 UAE Dirham
Nickel 201 Pipe 3.17mm OD X 0.51mm Thick X 1000mm Length	INR 8346.95	90.00 UK Pound Sterling	430.94 UAE Dirham

ASTM B829 Nickel Alloy Pipe Schedule Chart

1/8" IPS(.405"O. D.)	3 1/2" IPS( 4.000"O. D.)
SCH 40, 80	SCH 10, 40, 80, 160, XXH
1/4" IPS(.540"O. D.)	4" IPS(4.500"O. D.)
SCH 10, 40, 80	SCH 10, 40, 80, 160, XXH
3/8" IPS(.675"O. D.)	5" IPS( 5.563"O. D.)
SCH 10, 40, 80	SCH 10, 40, 80, 160, XXH
1/2" IPS(.840"O. D.)	6" IPS(6.625"O. D.)
SCH 5, 10, 40, 80, 160, XXH	SCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050"O. D.)	8 ” IPS(8.625"O. D.)
SCH 10, 40, 80, 160, XXH	SCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′O. D.)	10" IPS(10.750"O. D.)
SCH 5, 10, 40, 80, 160, XXH	SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660"O. D.)	12" IPS(12.750"O. D.)
SCH 10, 40, 80, 160, XXH	SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900"O. D.)	14" IPS(14.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH10 (.188), SCH40 (.375)
2" IPS(2.375"O. D.)	16" IPS(16.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH10(.188), SCH40(.375)
2 1/2" IPS(2.875"O. D.)	18" IPS (18.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH-40 (.375)
3" IPS( 3.500"O. D.)
SCH 5, 10, 40, 80, 160, XXH

Nickel Pipe Weight Chart

NPS	Outside Diameter		Wall Thickness			Weight	Weight
NPS	in	mm	in	mm	Sched	kg/Mtr	Lb/ft
1/2″	0.840	21	0.109	2.769	40 STD	1.268	0.851
			0.147	3.734	80 STD	1.621	1.088
3/4″	1.050	27	0.113	2.870	40 STD	1.684	1.131
			0.154	3.912	80 STD	2.195	1.474
1″	1.315	33	0.133	3.378	40 STD	2.501	1.679
			0.179	4.547	80 STD	3.325	2.172
1 1/4″	1.660	42	0.140	3.556	40 STD	3.385	2.273
			0.191	4.851	80 STD	4.464	2.997
1 1/2″	1.900	48	0.145	3.683	40 STD	4.048	2.718
			0.200	5.080	80 STD	5.409	3.361
2″	2.375	60	0.154	3.912	40 STD	5.441	3.653
			0.218	5.537	80 STD	7.480	5.022
2 1/2″	2.875	73	0.203	5.516	40 STD	8.629	5.793
			0.276	7.010	80 STD	11.411	7.661
3″	3.500	89	0.216	5.486	40 STD	11.284	7.576
			0.300	7.620	80 STD	15.272	10.253
4″	4.500	114	0.237	6.020		16.073	10.790
			0.337	8.560		22.318	14.983
6″	6.625	168	0.188	4.775		19.252	12.924
			0.203	5.516		20.739	13.923
			0.219	5.563		22.318	14.983
			0.250	6.350		25.354	17.021
			0.280	7.112	40 STD	58.263	18.974
			0.312	7.925		31.334	21.036
			0.375	9.525		37.285	25.031
			0.432	10.973	80 XHY	42.561	28.573
			0.500	12.700		48.719	32.708
8″	8.625	219	0.188	4.775		25.233	16.940
			0.203	5.156		27.198	18.259
			0.219	5.563		29.286	19.661
			0.250	6.350	20	33.308	22.361
			0.277	7.036	30	36.786	24.696
			0.322	8.179	40	42.352	28.554
			0.375	9.525		49.216	33.041
			0.406	10.312	60	53.085	35.638
			0.500	12.700	80 XHY	64.627	43.388
10″	10.750	273	0.188	4.775		31.588	21.207
			0.219	5.563		36.689	24.631
			0.250	6.350	20	41.759	28.035
			0.307	7.798	30	51.002	34.240
			0.344	8.738		56.946	38.231
			0.365	9.271	40 STD	63.301	40.483
			0.438	11.125		71.852	48.238
			0.500	12.700	60 XHY	81.530	54.735
			0.594	15.088	80	95.969	64.429
12″	12.750	324	0.188	4.775		37.570	25.222
			0.219	5.563		43.657	29.309
			0.250	6.350		49.713	33.375
			0.281	7.137		55.739	37.420
			0.312	7.925		61.735	41.445
			0.375	9.525		73.824	49.562
			0.406	10.312		79.727	53.525
			0.500	12.700		97.438	65.415
			0.562	14.275		108.966	73.154
14″	14.000	356	0.188	4.775		41.308	27.732
			0.219	5.563		48.012	32.233
			0.250	6.350	20	54.685	36.713
			0.281	7.137		61.327	41.172
			0.312	7.925		67.939	45.611
			0.375	9.525	STD	81.281	54.568
			0.438	11.125	40	94.498	63.441
			0.500	12.700	XHY	107.381	72.090
			0.625	15.875		132.983	89.278
16”	16.000	406	0.188	4.775		47.290	21.748
			0.219	5.563		54.980	36.910
			0.250	6.350	10	62.639	42.053
			0.281	7.137		70.268	47.174
			0.312	7.925	20	77.866	52.275
			0.344	8.738		85.677	57.519
			0.375	9.525	30 STD	93.213	62.578
			0.438	11.125		108.433	72.797
			0.500	12.700	40 XHY	123.289	82.770
18″	18.000	457	0.219	5.563		61.948	41.588
			0.250	6.350		70.593	47.393
			0.281	7.137		79.208	53.176
			0.312	7.925	20	87.792	58.939
			0.375	9.525	STD	105.144	70.588
			0.438	11.125	30	122.369	82.152
			0.500	12.700	XHY	139.198	93.450
			0.562	14.275	40	155.904	104.666
			0.625	15.875		172.754	115.978
20″	20.000	508	0.250	6.350		78.547	52.733
			0.282	7.163		88.458	59.386
			0.312	7.925		97.719	65.604
			0.375	9.525	20 STD	117.075	78.598
			0.438	11.125		136.305	91.508
			0.500	12.700	30 XHY	155.106	104.130
			0.594	15.088	40	183.378	123.110
			0.625	15.875		192.640	129.328
			0.688	17.475		211.368	141.901
24″	24.000	610	0.250	6.350		94.456	63.413
			0.281	7.137		106.029	71.183
			0.312	7.925		117.573	18.932
			0.375	9.525	20 STD	140.938	64.618
			0.438	11.125		164.176	110.219
			0.500	12.700	XHY	186.923	125.490
			0.625	15.875		232.410	156.028
			0.688	17.475	40	255.148	171.293
			0.750	19.050		277.401	186.233
30″	30.000	762	0.250	6.350		118.318	79.433
			0.281	7.137		132.851	89.189
			0.312	7.925	10	147.353	98.925
			0.375	9.525	STD	176.731	118.648
			0.438	11.125		205.983	138.286
			0.500	12.700	20 XHY	234.647	157.530
			0.625	15.875	30	292.066	196.078
			0.688	17.475		320.817	215.380
			0.750	19.050		348.988	234.293
36″	36.000	914	0.250	6.350		142.180	95.453
			0.281	7.137		159.672	107.196
			0.312	7.925	10	177.133	118.918
			0.375	9.525	STD	215.525	142.678
			0.438	11.125		247.790	166.353
			0.500	12.700	20 XHY	282.372	198.570
			0.625	15.875		351.723	236.128
			0.688	17.475		386.487	259.467
			0.750	19.050		420.576	282.353
42″	42.000	1067	0.312	7.925		206.914	138.911
			0.375	9.525	STD	248.319	166.708
			0.500	12.700	XHY	33.097	221.610
			0.750	19.050		492.163	330.413
48″	48.000	1219	0.375	9.525	STD	284.112	190.738
			0.438	11.125		331.404	222.487
			0.500	12.700	XHY	377.822	253.650
			0.750	19.050		563.750	378.473
			0.875	22.225		655.969	440.383

ASTM B725 Nickel Alloy Pipe Sizes

Astm B725 Nickel Alloy Pipe OD mm	Pipe WT mm	in.	Sch	Kg/m
13.72	1.65	1/4	10S	0.50
13.72	2.24	1/4	40S	0.64
13.72	3.02	1/4	80S	0.81
17.15	1.65	3/8	10S	0.64
17.15	2.31	3/8	40S	0.86
17.15	3.20	3/8	80S	1.12
21.34	2.11	1/2	10S	1.02
21.34	2.77	1/2	40S	1.29
21.34	3.73	1/2	80S	1.65
26.67	2.11	3/4	10S	1.30
26.67	2.87	3/4	40S	1.71
26.67	3.91	3/4	80S	2.23
33.40	2.77	1	10S	2.13
33.40	3.38	1	40S	2.54
33.40	4.55	1	80S	3.29
33.40	6.352)	1	160	4.30
42.16	2.77	1¼	10S	2.73
42.16	3.56	1¼	40S	3.44
42.16	4.85	1¼	80S	4.53
42.16	6.352)	1¼	160	5.69
48.26	2.77	1½	10S	3.16
48.26	3.68	1½	40S	4.11
48.26	5.08	1½	80S	5.49
60.33	2.77	2	10S	3.99
60.33	3.91	2	40S	5.52
60.33	5.54	2	80S	7.60
60.33	8.742)	2	160	11.29
73.03	3.05	2½	10S	5.35
73.03	5.16	2½	40S	8.77
73.03	7.01	2½	80S	11.59
88.90	3.05	3	10S	6.56
88.90	5.49	3	40S	11.47
88.90	7.62	3	80S	15.51
88.90	11.132)	3	160	21.67
101.60	3.05	3½	10S	7.53
101.60	5.74	3½	40S	13.78
101.60	8.08	3½	80S	18.92
114.30	3.05	4	10S	8.50
114.30	6.02	4	40S	16.32
114.30	8.56	4	80S	22.67
114.30	13.492)	4	160	34.05
141.30	6.55	5	40S	22.10
141.30	9.53	5	80S	31.44
141.30	15.882)	5	160	49.87
168.28	3.4	6	10S	14.04
168.28	7.11	6	40S	28.69
168.28	10.97	6	80S	43.21
168.28	14.27	6	120	54.75
168.28	18.262)	6	160	68.59
219.08	8.18	8	40S	43.20
219.08	12.7	8	80S	65.63
219.08	18.23	8	120	91.30
219.08	23.012)	8	160	112.97

Nickel Pipe Pressure Rating

Pipe O.D. (in.)	Wall Thickness of Pipe (inches)
	.028	.035	.049	.065	.083	.095	.109	.120
	Working Pressure (psig)
1/8	7900	10100
1/4	3700	4800	7000	9500
5/16		3700	5400	7300
3/8		3100	4400	6100
1/2		2300	3200	4400
3/4			2200	3000	4000	4600
1				2200	2900	3400	3900	4300
